Aura Audio

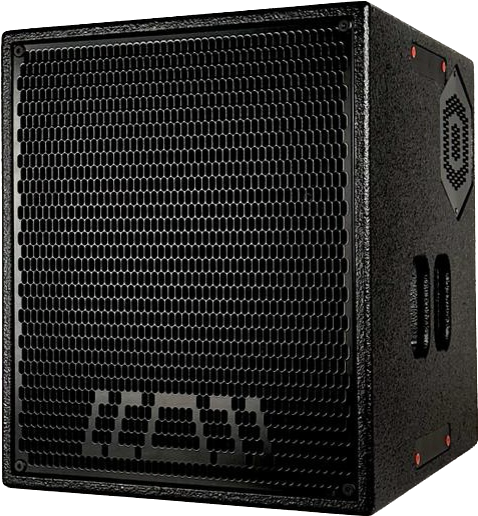

S1D
Tekniska data
| Frequency Response (+-3 dB) | 85Hz – 20 kHz |
|---|---|
| Horizontal Coverage (-6 dB) | 60/90/120 degr ees |
| Vertical Coverage (-6 dB) | 40/60 degrees |
| Max peak SPL | 138 dB (free space) |
| Sensitivity 1w/1m | 107 dB (free space) |
| Crossover | 250Hz/400Hz/3kHz passive |
| Power handling LF | 300 W rms, 1200 W peak |
| Recommended HP-filter | 90 Hz, 12dB/oct |
| Nominal impedance | 8 ohms |
| Drivers LF | (1) x 10" neodymium magnet cone driver, horn-loaded |
| Drivers LF Side | (2) x 6.5" cone driver, reflex-loaded |
| Drivers MF | (1) x 6.5" neodymium magnet cone driver, horn-loaded |
| Drivers HF | (1) x 1" exit compression driver, dual exit waveguide coaxially mounted to MF horn |
| Enclosure material | Finnish birch plywood, textured black paint finish |
| Grille | Cold rolled steel grille, textured black paint finish |
| Connectors | (2) x NL4, +/-1: Input, +/-2: link |
| Dimensions (H/W/D) | 500 mm x 430 mm x 450 mm |
| Weight | 32 kg |
Tillval: –
Tillbehör: FC-S1D
Kontakta oss för pris
Företagskunder med konto ser sina priser när de loggar in.
Skickas från leverantör
Art.nr AURA-S1D
