Aura Audio

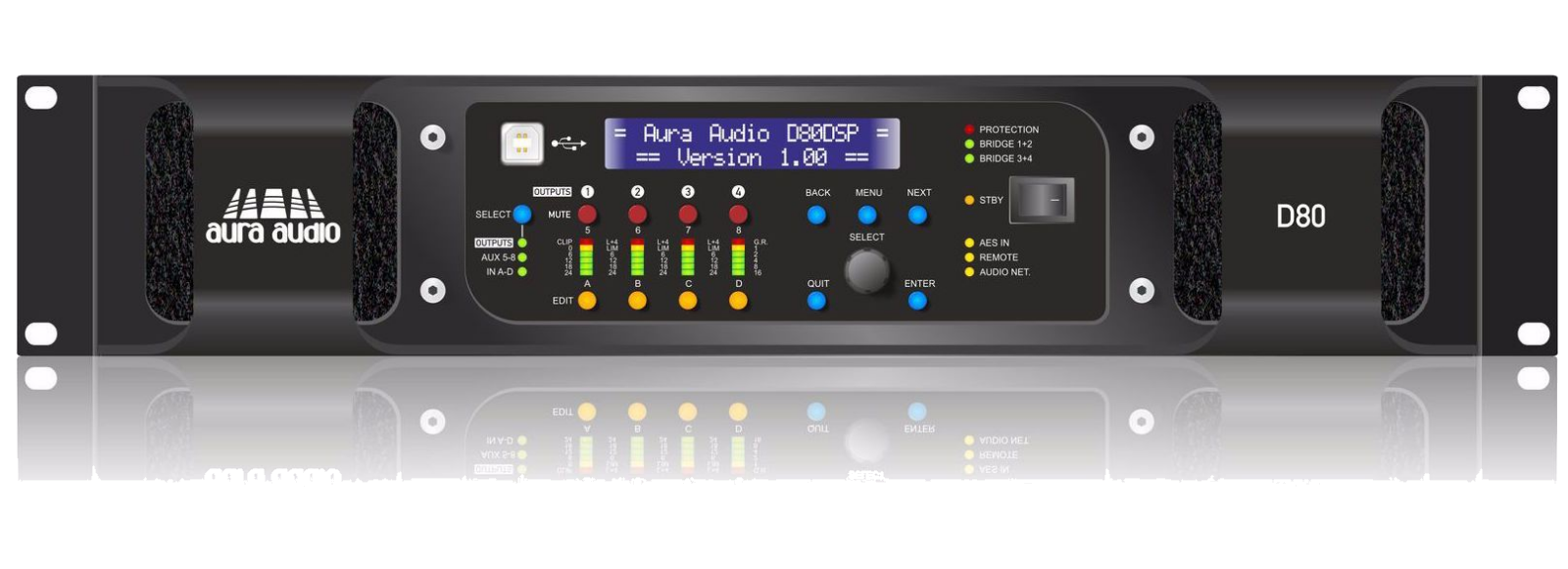

D80DSP
Tekniska data
| Number of amplifier channels | 4 |
|---|---|
| Output Power | (per channel); 8 ohms 1000W; 4 ohms 2000W; 2.7 ohms 2200W; 2 ohms 2000W |
| Output Power | (bridged); 8 ohms 4000W; 4 ohms 4000W |
| Processing | 24bit (ADC and DAC) |
| Internal sample rate | 96kHz |
| System THD | <0.08% (2kW, 1k) |
| Freq. resp. | 3Hz-30kHz -3dB; Gain; Delay; Polarity; IIR EQ (PEQ, shelving, variQ, all pass, phase, notch, band pass) for each input and output (4 per output, 8 per input) |
| Input connectors | 4 x XLR (two for AES) |
| Output connectors | 4 x Speakon |
| AUX DSP outputs | 4 XLR |
| Mains connector | PowerCon |
| Remote Control | USB (front panel) |
| Rear Panel | RS485 bus, Direct Ethernet, GPIO Port Dante Audio Network (optional) Up to 32 units can be connected into a closed control network; Amplifier 2U/88(h) x 482(w) x 428(d) |
| Weight | 10kg; Shipping weight 12kg |
| Shipping box | 250 x 610 x 600 |
Tillval: Dante
Kontakta oss för pris
Företagskunder med konto ser sina priser när de loggar in.
Skickas från leverantör
Art.nr AURA-D80DSP
