Acemic - X4

X4 Wireless Microphone User Manual.pdf

Model: X4
True Diversity
Operating Range: 492ft, 150m

Specifications

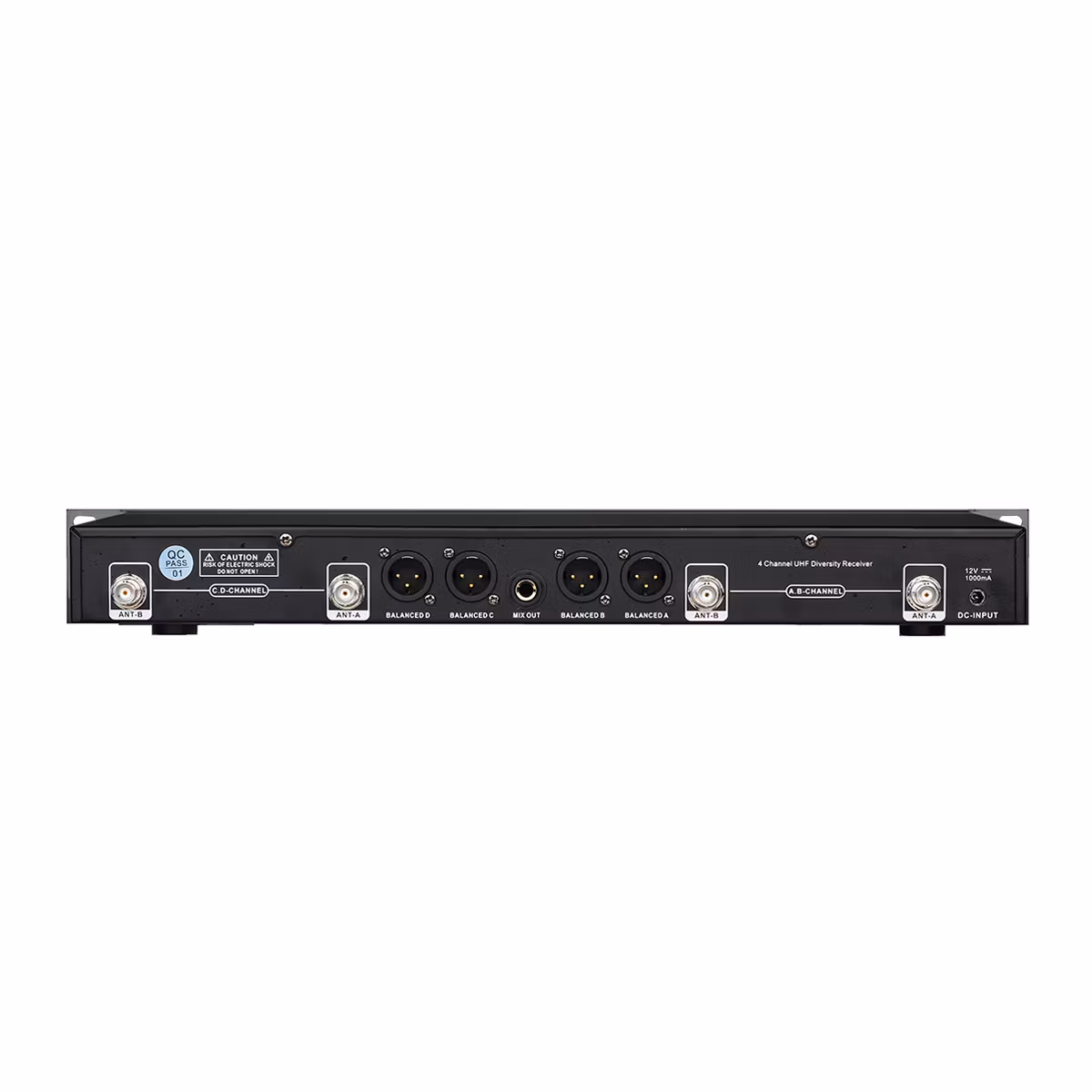

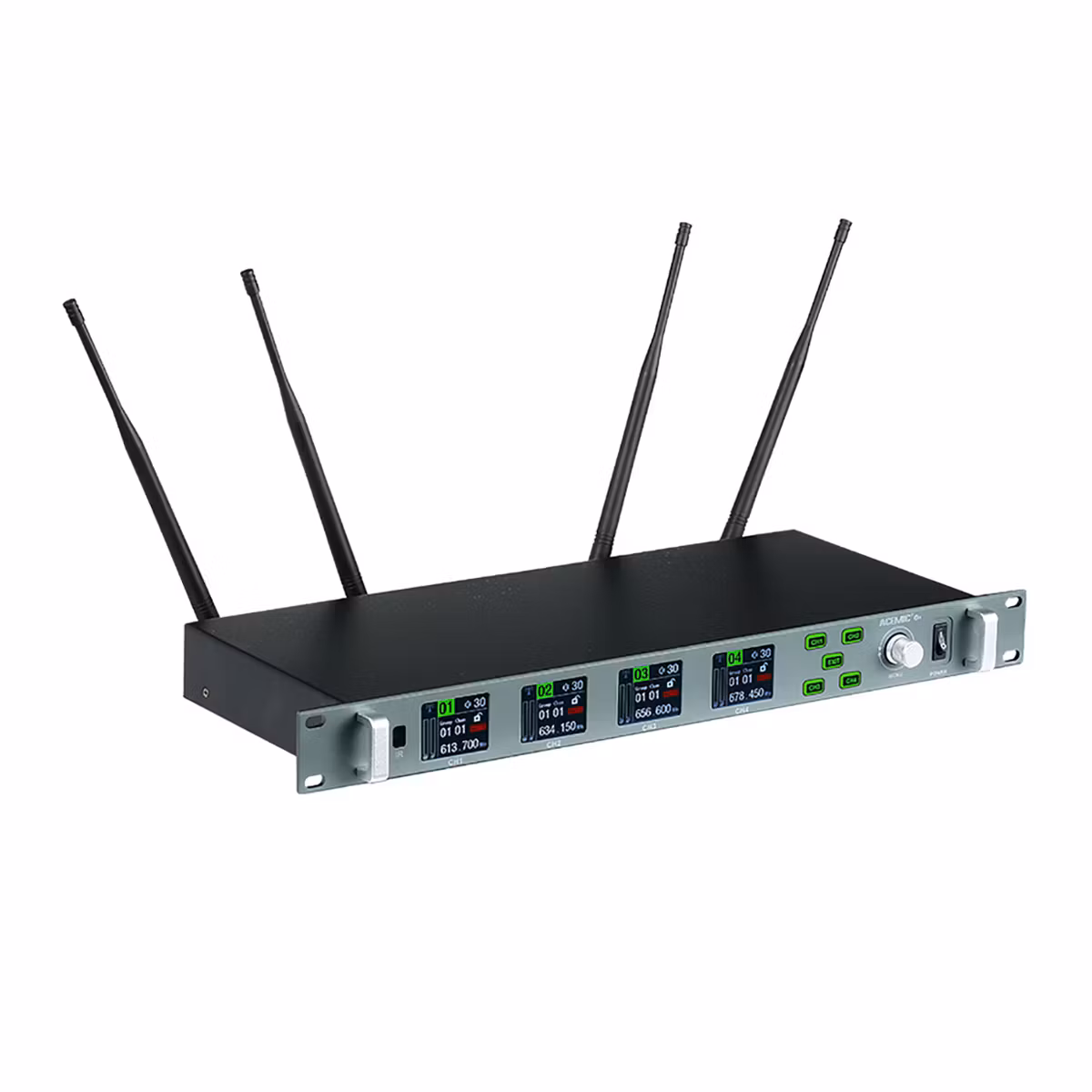

Receiver

Frequency Range:  UHF 610-698 MHz
(USA: 902-928, UK: 823-832; 863-865, ROK: 925-937)

Frequency Band Width: 42M/60M

Maximum Number of Channels: 6000

Frequency Stability: +-10PPM

Dynamic Range: 118dB

Frequency Response: 35Hz-20KHz

Total Harmonic Distortion: <0.5% at 1KHz

Signal/Noise Ratio: ≥110dB

Image Reject: >100dB

Receiving Sensitivity: -105dBm(sinad ≥12dB)

Power Supply: 1500mA

Handheld

Frequency Range: UHF 610-698 MHz
(USA: 902-928, UK: 823-832; 863-865, ROK: 925-937)

Frequency Band Width: 88MHz

RF Power: 15/30mW

Max Frequency Deviation: 65KHz

Microphone Type:Dynamic

Directivity： Cardioid

Power Requirements: 1*14500Lithium Battery or 1*1.5V AA Battery

Continuous Using: 10 hours

Body-pack

Frequency Range: UHF 610-698 MHz
(USA: 902-928, UK: 823-832; 863-865, ROK: 925-937)

Frequency Band Width: 88MHz

RF Power: 15/30mW

Max Frequency Deviation: 65KHz

Microphone Type:Dynamic

Directivity： Cardioid

Power Requirements: 1*14500Lithium Battery or 1*1.5V AA Battery

About this item:

【Enhanced Signal Reliability】Harnessing the power of Auto Scan, the UHF 4 wireless microphone system rapidly identifies the least-interference frequency to sync. This advanced feature of the quad wireless microphone system increases anti-interference ability and decreases interference between each channel. The 4 wireless microphone system also has lock function to lock selected frequency. 4x1200 Selectable UHF frequencies allows multiset operation of up to 10 sets systems simultaneously.

【Premium Wireless Performance】The 4 channel wireless microphone system with selectable frequencies. Maximum frequencies up to 6000. The microphone wireless employs hassle-free IR synchronization to pair up the receiver and transmitters smoothly within seconds, with minimum dropouts, and maximum feedback rejection. Long range operation for this quad wireless microphone system of 492 feet (150m) line of sight.

【Refined Sound Clarity】With specially tuned EQ, the dynamic microphone delivers an output frequency response curve similar to the Harman curve, featuring fuller low frequencies, bright high frequencies, and a balanced midrange. Employing a cardioid polar pattern, the 4 wireless microphone system ensures precise sound pickup and effectively rejects ambient noise. Additionally, the replaceable mic wireless head design extends product lifespan and ensures ongoing optimal performance.

【Durable Metal Construction】Built with a sleek metal design, the 4 channel wireless microphone system not only offer a premium look and feel but also ensure extended durability and an enhanced user experience. Moreover, the handheld microphone's mute function provides added convenience and flexibility, allowing for quick control during performances. Suitable cordless microphone for church, wedding, karaoke, DJ gigs, public speaking, etc.

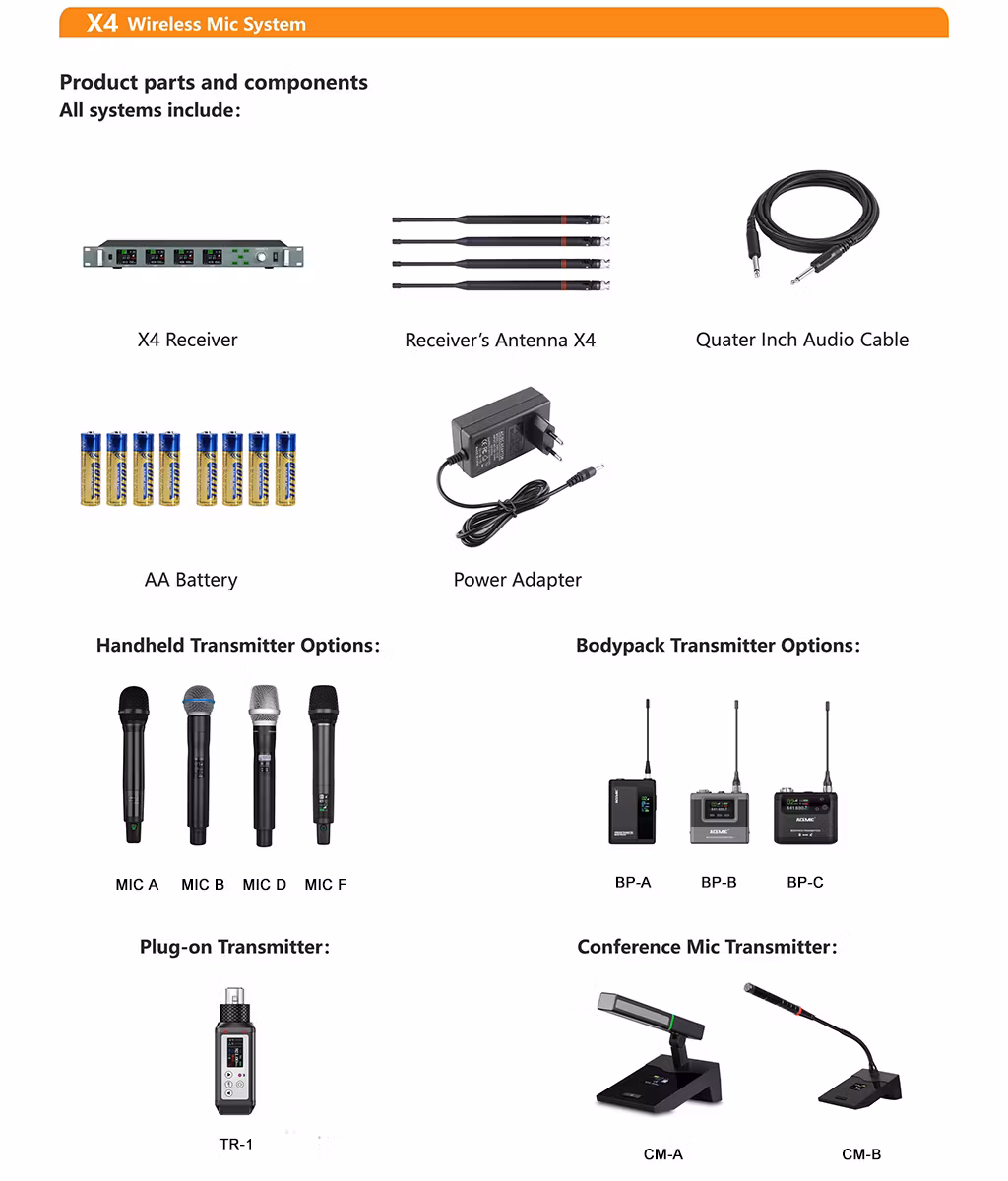

【Box Contents】1 x quad channel wireless metal receiver for long operation, 4 x UHF handheld microphone wireless,1 x 1/4’’ audio cable, 1 x power adapter, 1 x 6.5 mm to 3.5 mm adapter, 4 x antenna, 4 x anti-rolling ring, 8 x AA battery for 10 hours long hour use, 1 x user manual, 4 x rubber feet. You can conveniently source all necessary components from our store, enabling the quick and efficient setup of your 4 wireless microphone system according to your specific needs.
