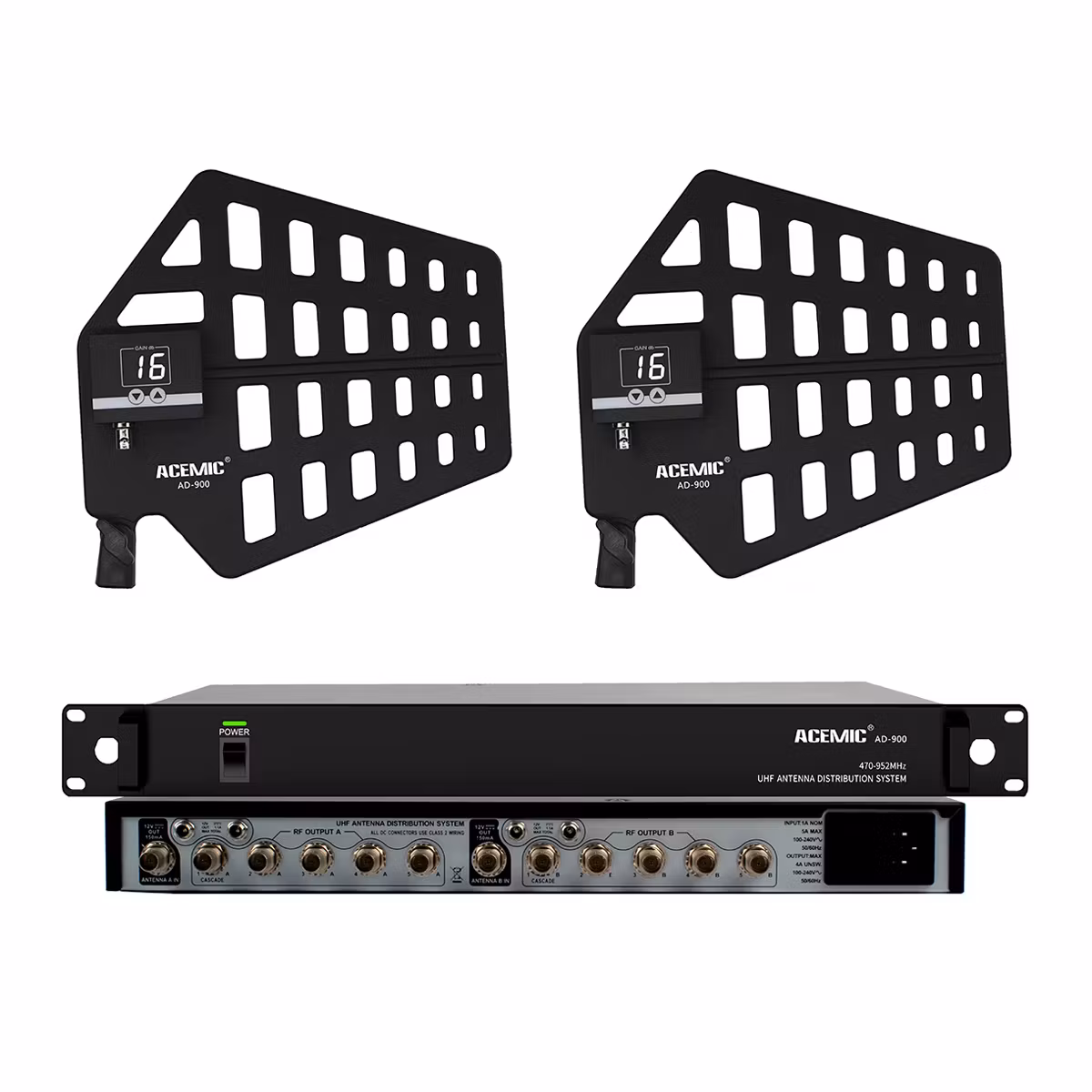

Acemic - AD-900

  • 5 000 kr

Model: AD-90010 Groups of ChannelGain dB Adjustment, Outdoor WaterproofAntenna SpecificationsFrequency band: UHF 470-952 MHzDirectionality: CardioidPolarization

I lager
Dela
Artikelnummer: AD-900
Leverantör: Acemic

Model: AD-900
10 Groups of Channel
Gain dB Adjustment, Outdoor Waterproof

Antenna Specifications

Frequency band: UHF 470-952 MHz

Directionality: Cardioid

Polarization method: linear

Gain: -16~16db (manually each 1dB)

Standing wave ratio:<2

Amplifier low noise:<0.6dB

Amplifier OIP3:>38dBm

External power supply: 6-12DCV

Current: 150mA

Connector port: BNC

Host Technical Specifications

Frequency band: UHF 470-952 MHz

Total gain: 0dB, ± 1dB

Separation degree:>25dB

Input/output impedance: 50 ohms

Connector port: BNC

Antenna power supply:+12V DC/200mA, with the central point being the positive pole

DC output: 12V DC/1A (MAX) * 4 groups with central point as positive pole

Power supply: 100-240V AC, 50/60Hz 36W (DC-OUT-12V MAX: 3A)
